Hydrolevel 250WC - Model 45-252 Cut-Off/Pump Control. Steam Boilers

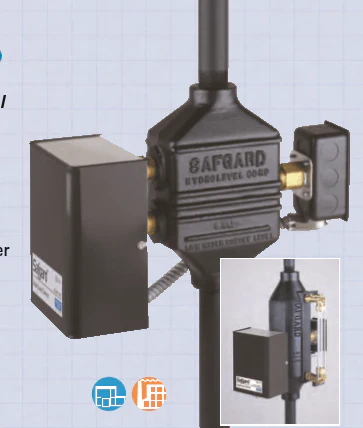

Product image 1

Hydrolevel 250WC - Model 45-252 Cut-Off/Pump Control. Steam Boilers

Used on steam boilers. Operates boiler feed pump to maintain water level between. Burner circuit contacts open if water drops below bottom probe. Automatically restarts burner on return of normal water level.

    No Moving Parts in Boiler Water
    Automatic Reset
    Power Consumption 7 VA
    Controls Boiler Feed Pump
    Maintains Recommended Water Level in Boiler
    Accommodates Boilers to 250WC PSI
    MODEL 250WC
    Primary Lelay 10FLA, 60 LRA
    Pump Relay: 20 FLA, 120 LRA
    Switch Contacts: DPST
    Power Consumption 13 VA
    Max Steam Pressure: 250 PSI
    Voltage: 120VAC
    Manifold: 1214C-1

Used on steam boilers. Operates boiler feed pump to maintain water level between. Burner circuit contacts open if water drops below bottom probe. Automatically restarts burner on return of normal water level.

    No Moving Parts in Boiler Water
    Automatic Reset
    Power Consumption 7 VA
    Controls Boiler Feed Pump
    Maintains Recommended Water Level in Boiler
    Accommodates Boilers to 250WC PSI
    MODEL 250WC
    Primary Lelay 10FLA, 60 LRA
    Pump Relay: 20 FLA, 120 LRA
    Switch Contacts: DPST
    Power Consumption 13 VA
    Max Steam Pressure: 250 PSI
    Voltage: 120VAC
    Manifold: 1214C-1
$803.37
Hydrolevel 250WC - Model 45-252 Cut-Off/Pump Control. Steam Boilers—
$803.37

Description

Used on steam boilers. Operates boiler feed pump to maintain water level between. Burner circuit contacts open if water drops below bottom probe. Automatically restarts burner on return of normal water level.

    No Moving Parts in Boiler Water
    Automatic Reset
    Power Consumption 7 VA
    Controls Boiler Feed Pump
    Maintains Recommended Water Level in Boiler
    Accommodates Boilers to 250WC PSI
    MODEL 250WC
    Primary Lelay 10FLA, 60 LRA
    Pump Relay: 20 FLA, 120 LRA
    Switch Contacts: DPST
    Power Consumption 13 VA
    Max Steam Pressure: 250 PSI
    Voltage: 120VAC
    Manifold: 1214C-1
