Kunkle Model 930 Safety Valve - 2" x 2"

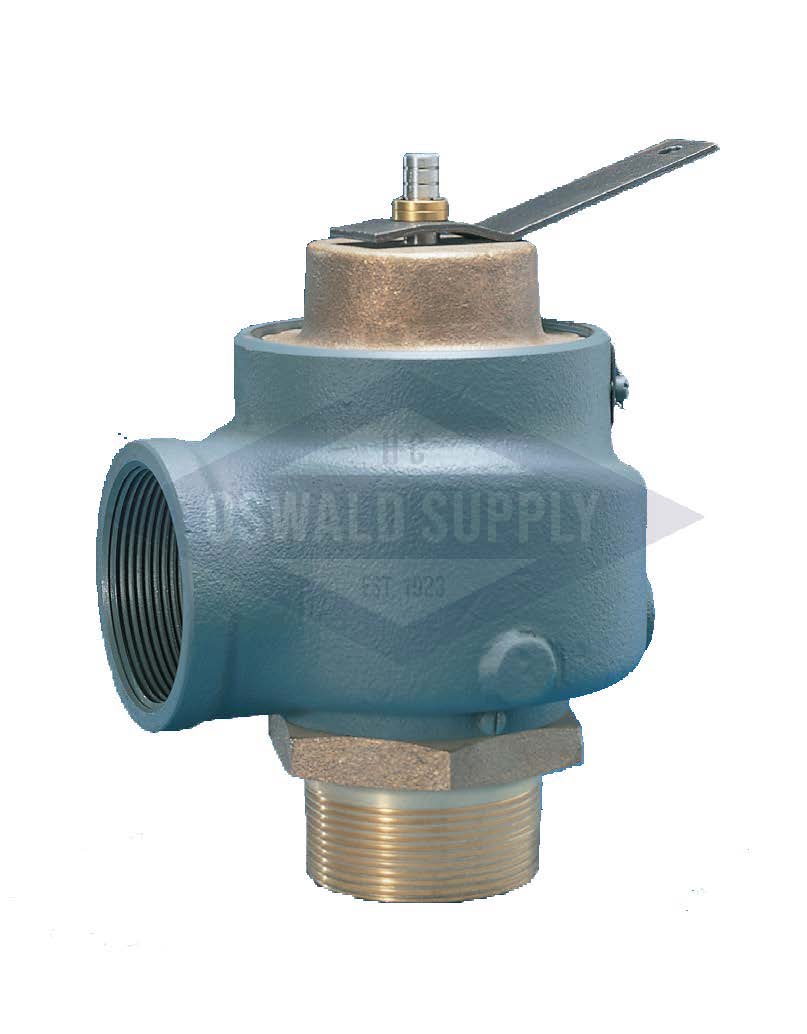

Product image 1

Kunkle Model 930 Safety Valve - 2" x 2"


Kunkle safety valve is suitable for use on low pressure steam heating boilers to ASME code sections IV and XIII at 15 psig set pressure.



Features



* Set at 15 psig

* Capacity 3164 lbs/hr

* Threaded NPT

* Cast iron body with bronze nozzle, disc and guide

* Meets ASME code, section IV and XIII


Kunkle safety valve is suitable for use on low pressure steam heating boilers to ASME code sections IV and XIII at 15 psig set pressure.



Features



* Set at 15 psig

* Capacity 3164 lbs/hr

* Threaded NPT

* Cast iron body with bronze nozzle, disc and guide

* Meets ASME code, section IV and XIII

$412.40
Kunkle Model 930 Safety Valve - 2" x 2"—
$412.40

Description


Kunkle safety valve is suitable for use on low pressure steam heating boilers to ASME code sections IV and XIII at 15 psig set pressure.



Features



* Set at 15 psig

* Capacity 3164 lbs/hr

* Threaded NPT

* Cast iron body with bronze nozzle, disc and guide

* Meets ASME code, section IV and XIII
