New Yorker CG20, 38K Input Cast Iron Gas-Fired Water Boiler

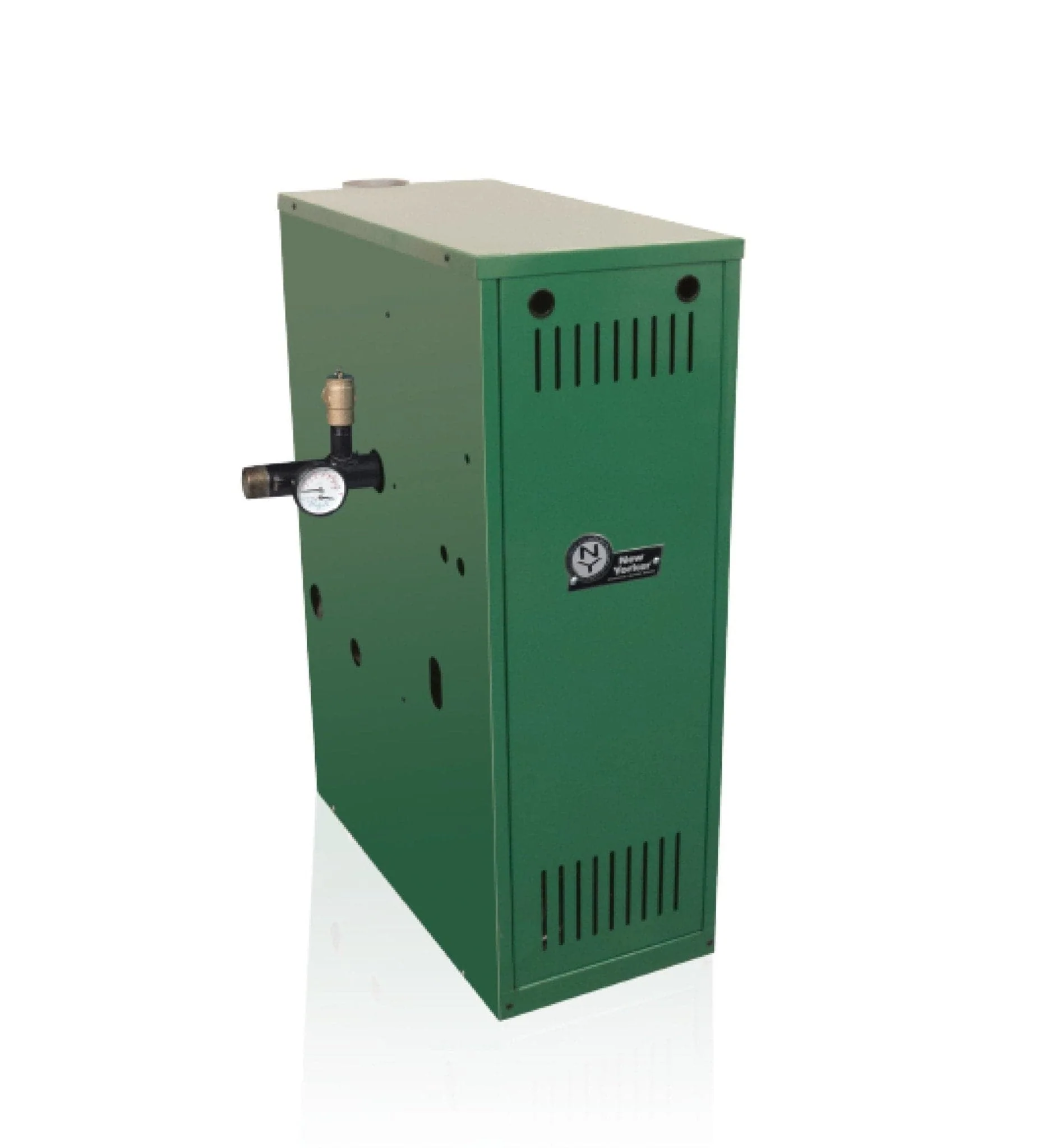

Product image 1

New Yorker CG20, 38K Input Cast Iron Gas-Fired Water Boiler

New Yorker CG20, 38K Input Cast Iron Gas-Fired Water Boiler

Product Specifications

  • 84% AFUE
  • 38-MBH Input
  • 32-MBH DOE Heating Capacity
  • 28-MBH Net AHRI Rating, Water
  • Chimney vented
  • Integrated boiler control
  • Energy-saving thermal purge feature circulates residual warm water in heating system prior to firing boiler
  • Integral LWCO (IDL-1200)
  • Additional pump relay
  • Natural gas
  • Cast iron heat exchanger: Meets the ASME Boiler and Pressure Vessel Code
  • Metal section connectors: Resist chemicals, increases the life of the boiler
  • Step-opening gas valve: Provides smooth & quiet start-up
  • Lifetime limited warranty

Standard Equipment

  • Insulated steel jacket
  • Integral draft diverter, damper and connector included
  • Heavy gauge 1" base insulation
  • Integrated boiler control simple, self-diagnostic, with 3-digit readout for status
  • Step-opening redundant gas valve
  • 130¬ˆžF minimum return temperature rating
  • Spark ignition with continuous retry
  • User-friendly wiring with 120V J-box
  • Circulator Taco
  • Cast iron section assembly
  • Resettable blocked vent switch
  • Boiler drain valve
  • Cast iron supply manifold with safety relief valve tapping
  • Stainless steel burners

Resource Document
New Yorker Boiler CG-F Specifications

New Yorker CG20, 38K Input Cast Iron Gas-Fired Water Boiler

Product Specifications

  • 84% AFUE
  • 38-MBH Input
  • 32-MBH DOE Heating Capacity
  • 28-MBH Net AHRI Rating, Water
  • Chimney vented
  • Integrated boiler control
  • Energy-saving thermal purge feature circulates residual warm water in heating system prior to firing boiler
  • Integral LWCO (IDL-1200)
  • Additional pump relay
  • Natural gas
  • Cast iron heat exchanger: Meets the ASME Boiler and Pressure Vessel Code
  • Metal section connectors: Resist chemicals, increases the life of the boiler
  • Step-opening gas valve: Provides smooth & quiet start-up
  • Lifetime limited warranty

Standard Equipment

  • Insulated steel jacket
  • Integral draft diverter, damper and connector included
  • Heavy gauge 1" base insulation
  • Integrated boiler control simple, self-diagnostic, with 3-digit readout for status
  • Step-opening redundant gas valve
  • 130¬ˆžF minimum return temperature rating
  • Spark ignition with continuous retry
  • User-friendly wiring with 120V J-box
  • Circulator Taco
  • Cast iron section assembly
  • Resettable blocked vent switch
  • Boiler drain valve
  • Cast iron supply manifold with safety relief valve tapping
  • Stainless steel burners

Resource Document
New Yorker Boiler CG-F Specifications

$729.78

Original: $2,085.08

-65%
New Yorker CG20, 38K Input Cast Iron Gas-Fired Water Boiler—

$2,085.08

$729.78

Description

New Yorker CG20, 38K Input Cast Iron Gas-Fired Water Boiler

Product Specifications

  • 84% AFUE
  • 38-MBH Input
  • 32-MBH DOE Heating Capacity
  • 28-MBH Net AHRI Rating, Water
  • Chimney vented
  • Integrated boiler control
  • Energy-saving thermal purge feature circulates residual warm water in heating system prior to firing boiler
  • Integral LWCO (IDL-1200)
  • Additional pump relay
  • Natural gas
  • Cast iron heat exchanger: Meets the ASME Boiler and Pressure Vessel Code
  • Metal section connectors: Resist chemicals, increases the life of the boiler
  • Step-opening gas valve: Provides smooth & quiet start-up
  • Lifetime limited warranty

Standard Equipment

  • Insulated steel jacket
  • Integral draft diverter, damper and connector included
  • Heavy gauge 1" base insulation
  • Integrated boiler control simple, self-diagnostic, with 3-digit readout for status
  • Step-opening redundant gas valve
  • 130¬ˆžF minimum return temperature rating
  • Spark ignition with continuous retry
  • User-friendly wiring with 120V J-box
  • Circulator Taco
  • Cast iron section assembly
  • Resettable blocked vent switch
  • Boiler drain valve
  • Cast iron supply manifold with safety relief valve tapping
  • Stainless steel burners

Resource Document
New Yorker Boiler CG-F Specifications
